Microwave Connectors Connectors for Microwave Applications: High-Performance Solutions from Times Microwave Systems

Filter

Product Family

Gender

Orientation

Interface

Filter

Part #	Description	Interface	Gender	Orientation	Stock Code	Compatible With
SP-PF318-KM	straight 2.92mm Male Vented for 0.318 Phase Track Flexible Cable	2.92mm	male (plug)	Straight	SP071	PT-318-SP
SP-PF140-KM	Type 2.92mm, male (plug), straight, SP, high temp interface style...	2.92mm	male (plug)	Straight	SP081

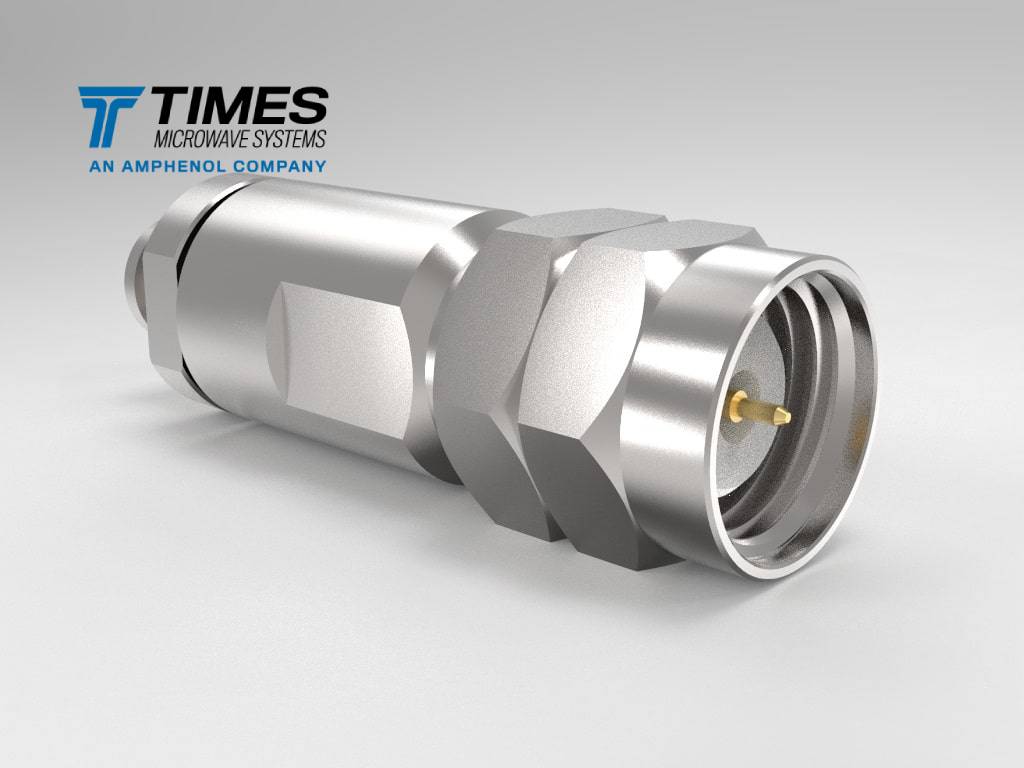

EZ-PT047-185M-SS	1.85 mm, male, straight, for PT-047/SF-047/TF-047	1.85mm	male (plug)	Straight	3190-6875	TF-047

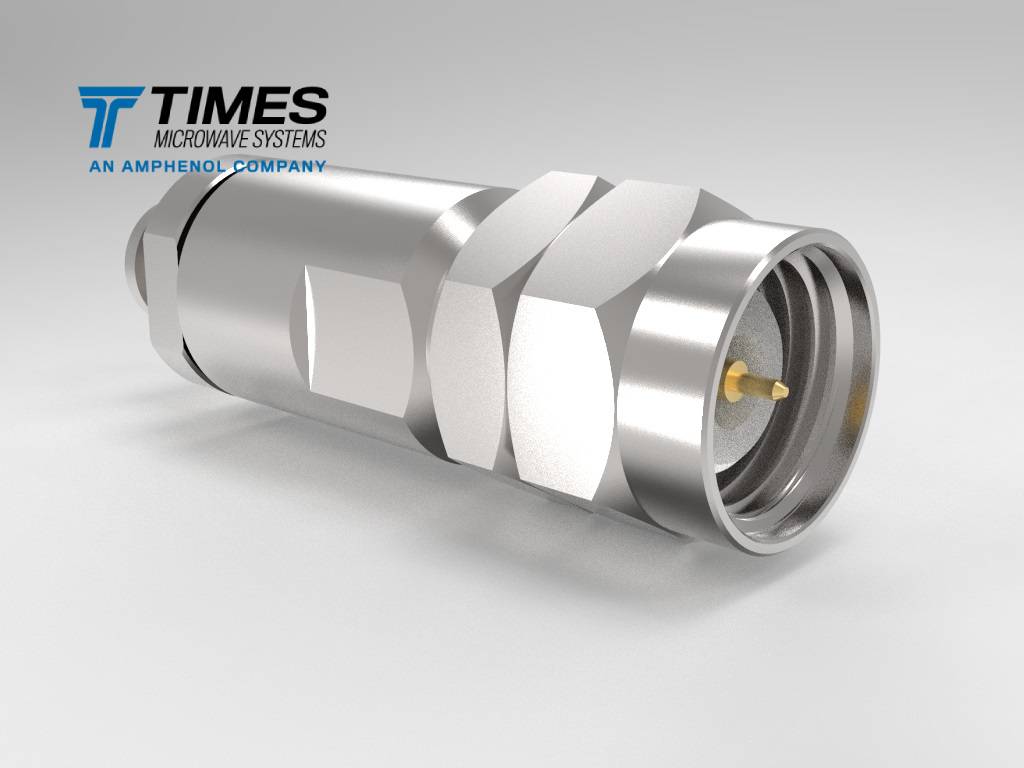

EZ-PT047-24M-SS	2.4 mm, male, straight, for PT-047/SF-047/TF-047	2.4mm	male (plug)	Straight	3190-6876	TF-047

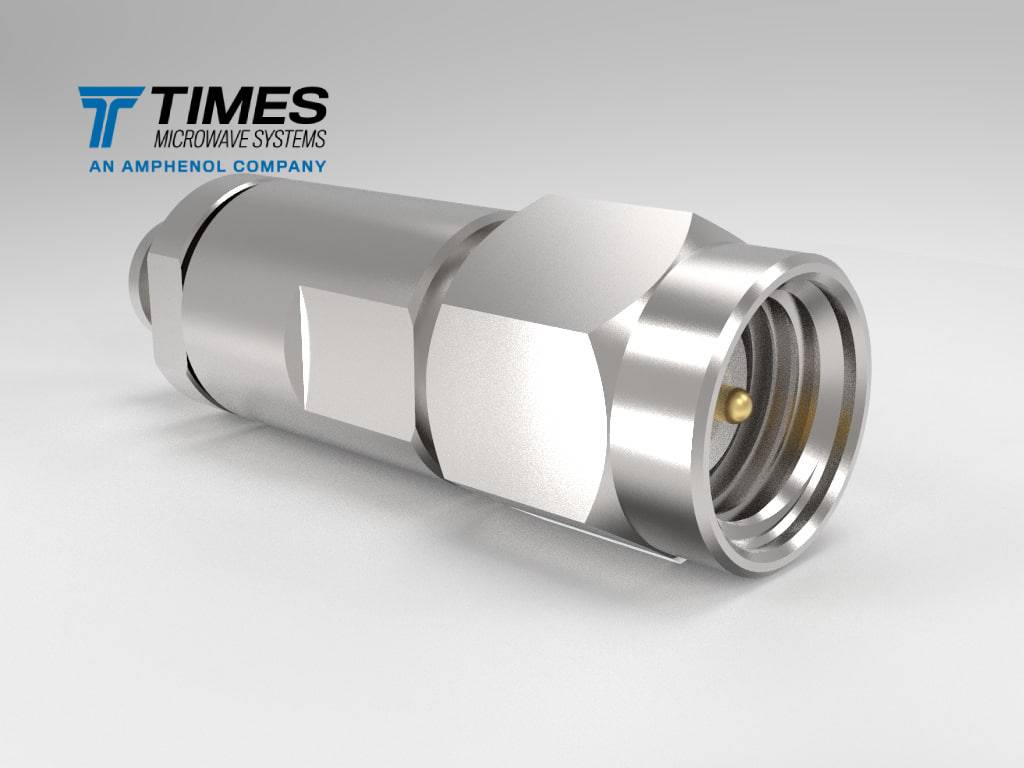

EZ-PT047-KM-SS	2.92 mm, male, straight, for PT-047/SF-047/TF-047	2.92mm	male (plug)	Straight	3190-6877	TF-047

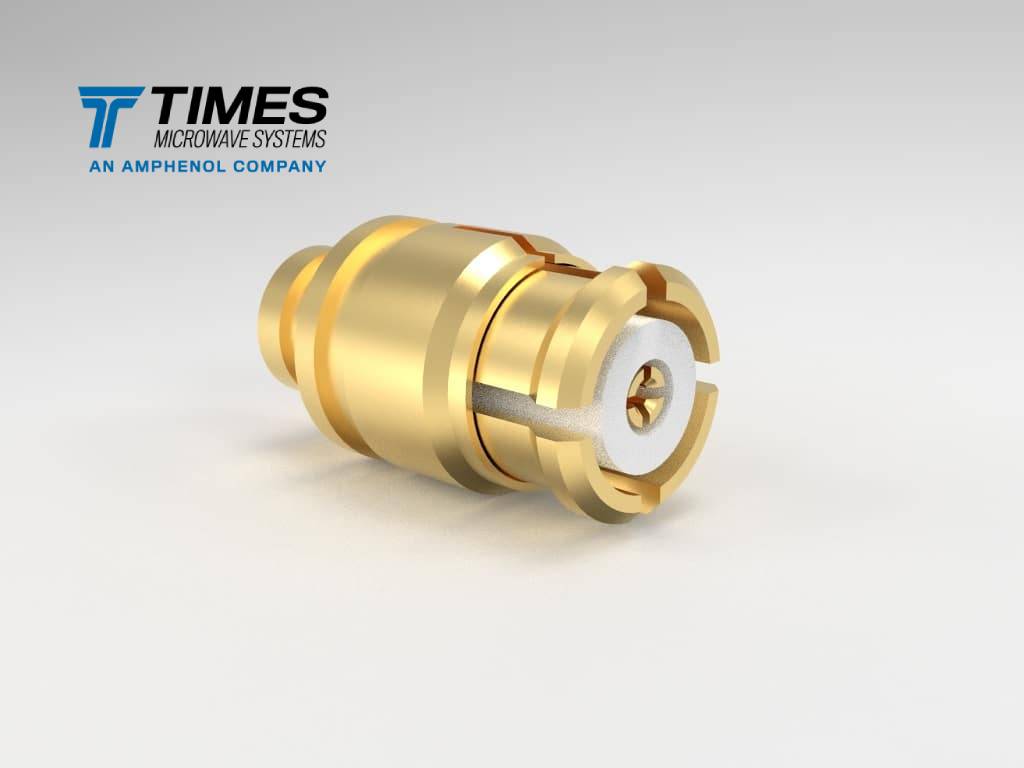

EZ-PT047-SMPF-DS	SMP, female, straight, for PT-047/SF-047/TF-047	SMP	female (plug)	Straight	3190-6879	TF-047

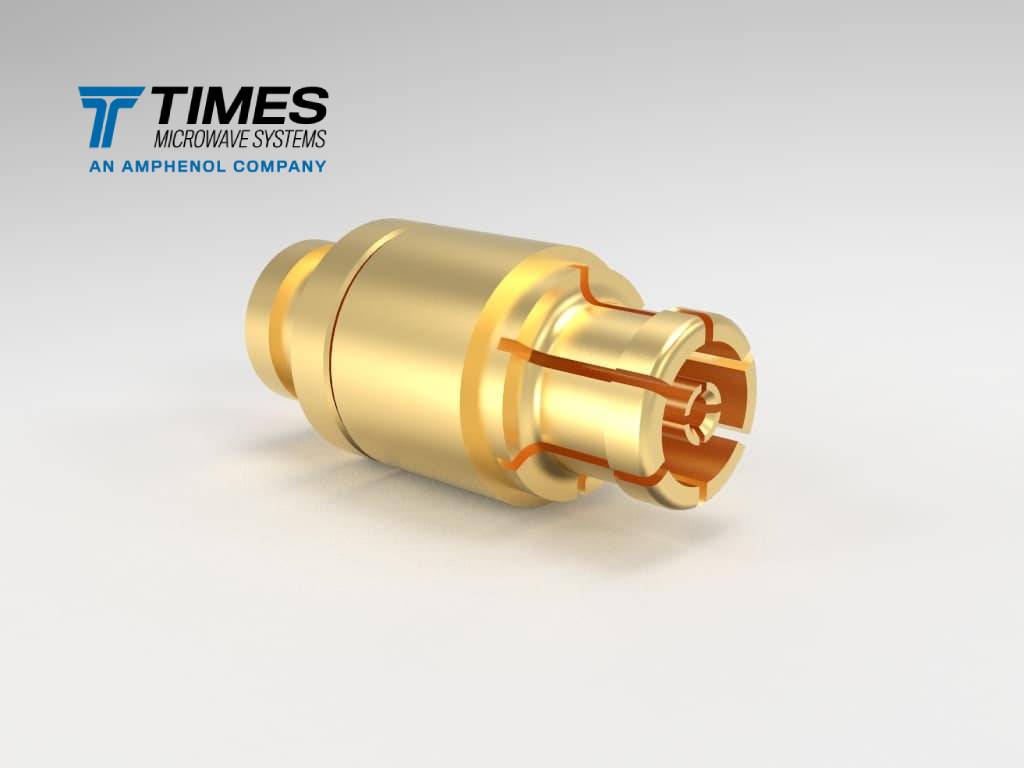

EZ-PT047-MSMPF-DS	SMPM, female, straight, for PT-047/SF-047/TF-047	SMPM	female (plug)	Straight	3190-6880	TF-047
EZ-PT047-SMPSF-RA-DS	SMPS, female, right angle, for PT-047-SMPSF/SF-047-SMPSF/TF-047	SMPS	female (plug)	Right Angle	3190-6906	TF-047

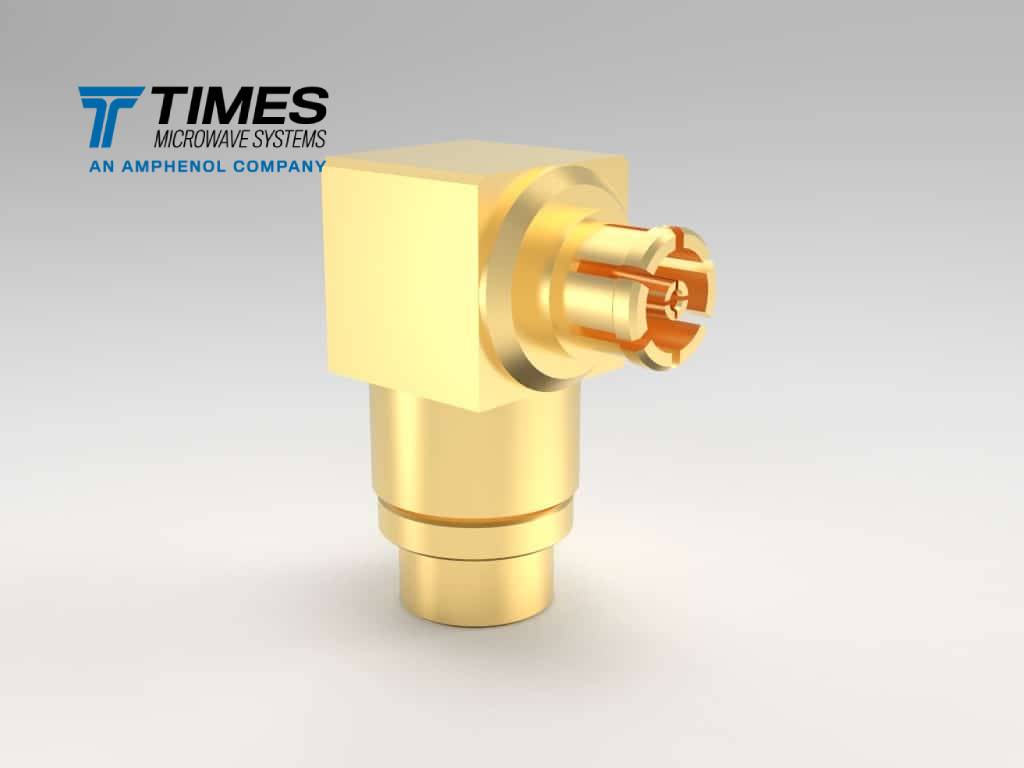

EZ-PT047-MSMPF-RA-DS	Mini SMP, female, right angle, for PT-047/SF-047/TF-047	SMPM	female (plug)	Right Angle	3190-6817	TF-047

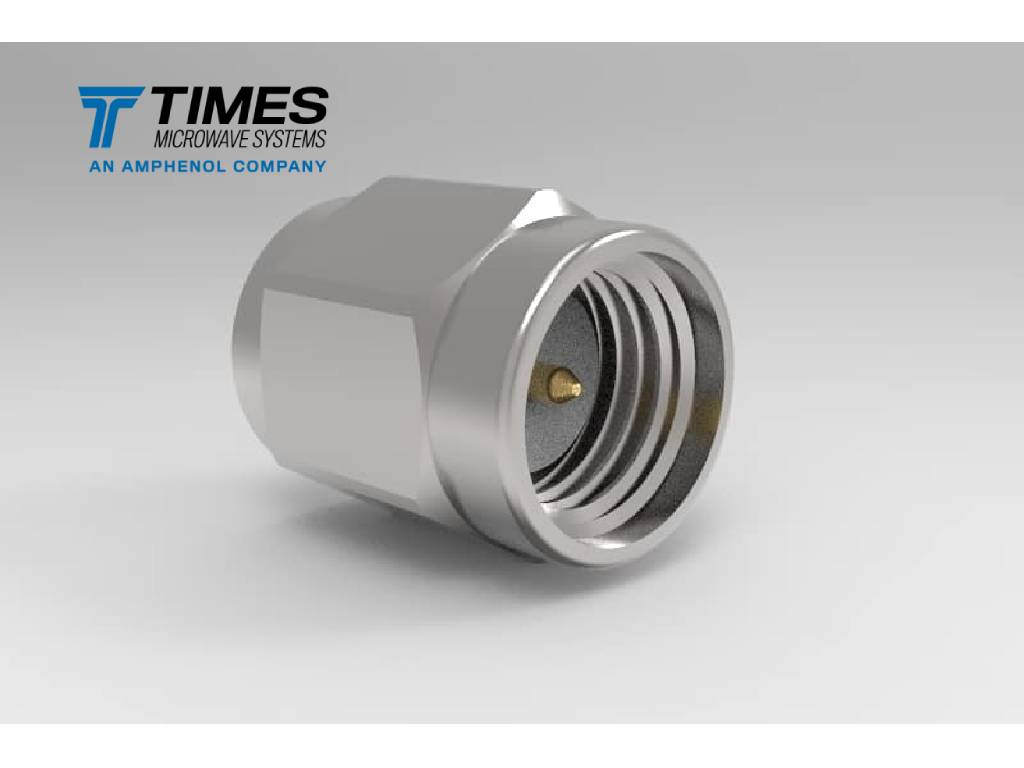

SP-IB047-KM	Type 2.92mm, male (plug), straight, SP style connector for IB-047...	2.92mm	male (plug)	Straight	SP121	IB-047
SP-IB405-KM	Type 2.92mm, male (plug), straight, SP style connector for IB-086...	2.92mm	male (plug)	Straight	SP120	IB-086
SP-PT092-KM	Type 2.92mm, male (plug), straight, SP style connector for PT-092...	2.92mm	male (plug)	Straight	SP116	SPFLX-095-LW
SP-PT047-KM	Type 2.92mm, male (plug), straight, SP style connector for PT-047...	2.92mm	male (plug)	Straight	SP107	PT-047

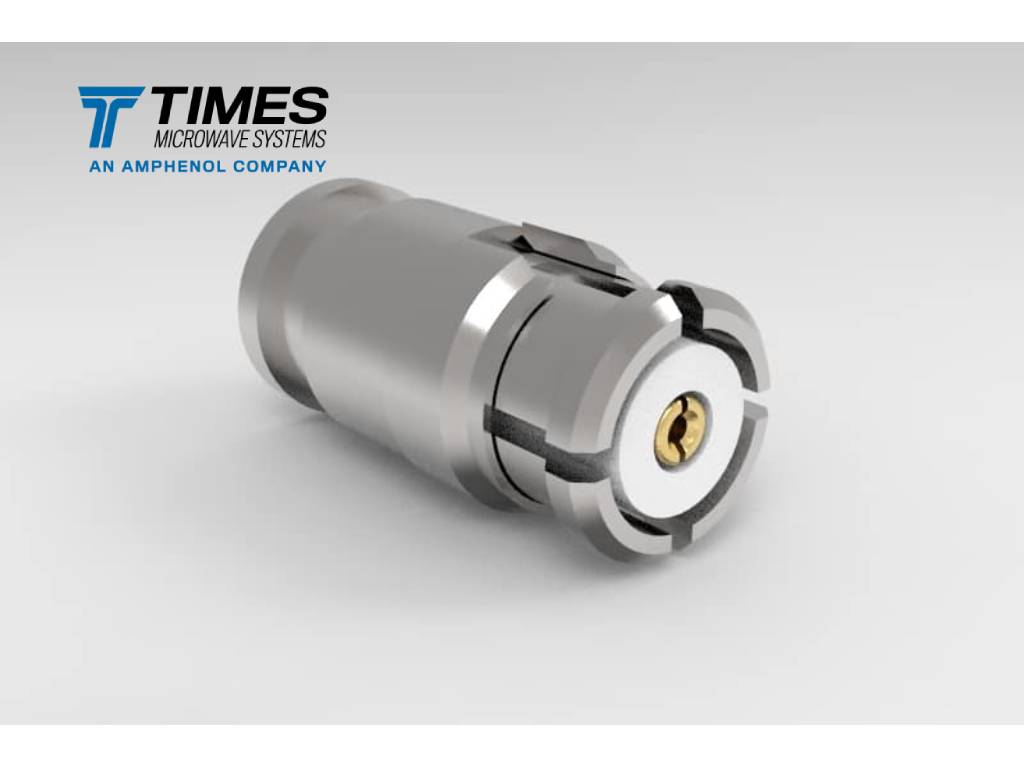

TC-405-SMPF	Type SMP, female (jack), straight, TC style connector for TFLEX®-405...	SMP	female (jack)	Straight	3190-6329	TFLEX-405

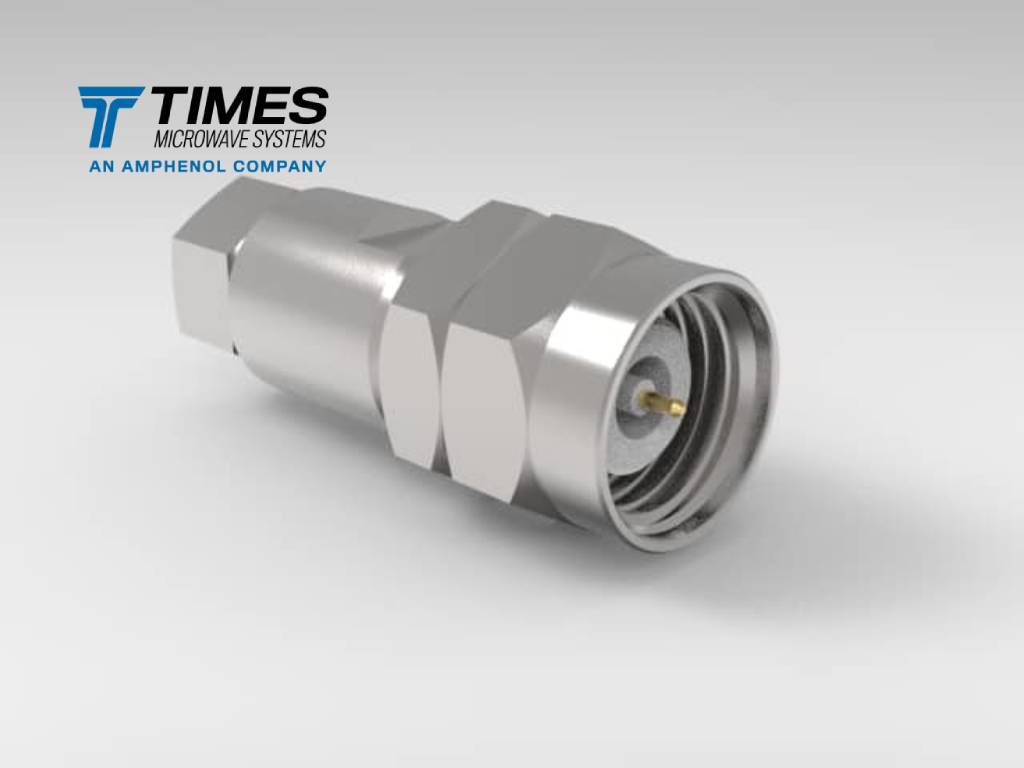

EZ-405-24M-SS	Type 2.4mm, male (plug), straight, EZ style connector for TFLEX®-405...	2.4mm	male (plug)	Straight	3190-6317	TFLEX-405

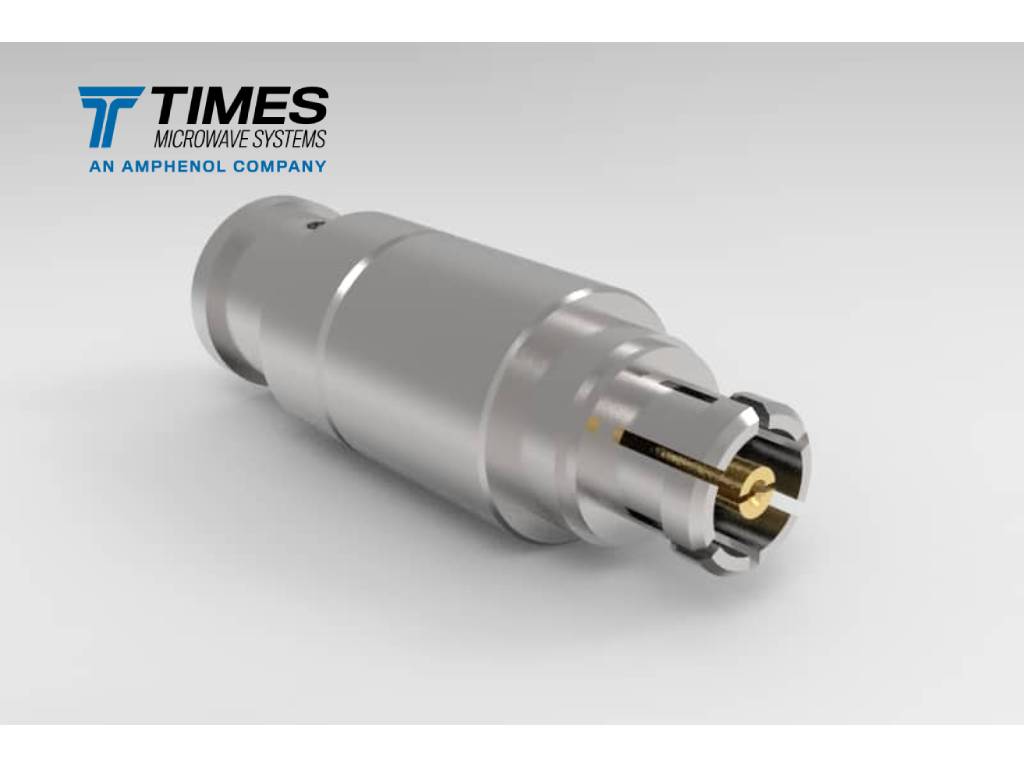

EZ-405-MSMPF	Type MSMP, female (jack), straight, EZ style connector for TFLEX®-405...	SMP	female (jack)	Straight	3190-6314	TFLEX-405

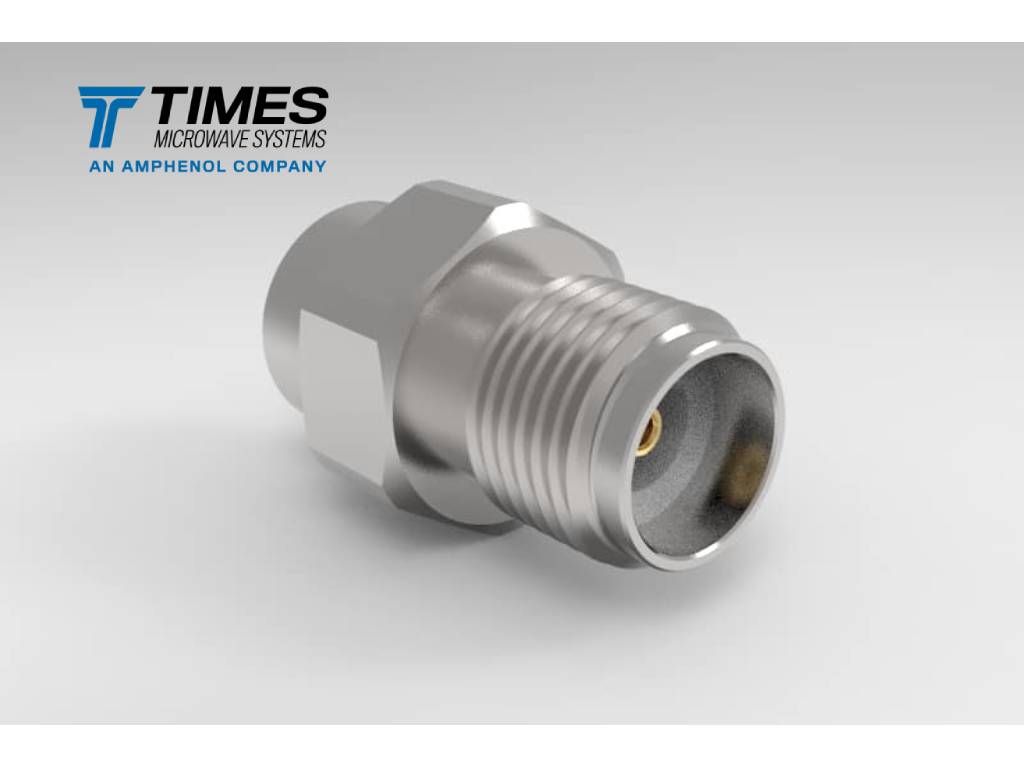

EZ-405-KF-SS	Type K, female (jack), straight, EZ style connector for TFLEX®-405...	2.92mm	female (jack)	Straight	3190-6309	TFLEX-405
EZ-PT150-KM-SS	Type K, male (plug), straight, EZ style connector for PT-150...	2.92mm	male (plug)	Straight	3190-6291	PT-150

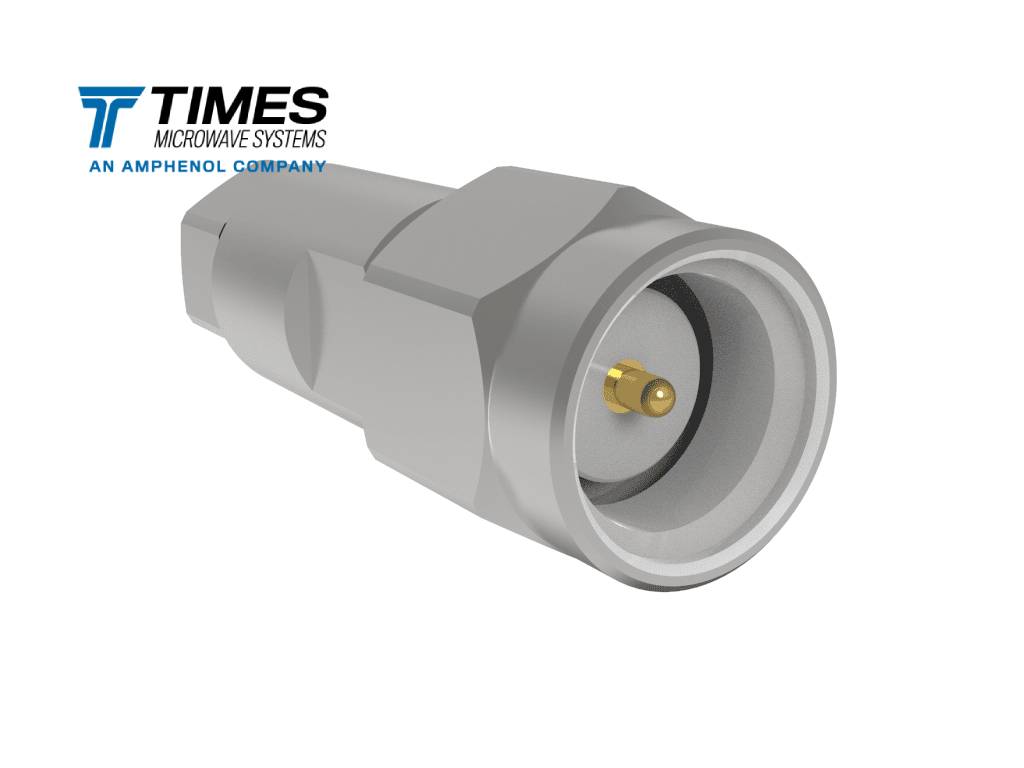

EZ-405-KM-SS	Type K, male (plug), straight, EZ style connector for TFLEX®-405...	2.92mm	male (plug)	Straight	3190-6225	TFLEX-405

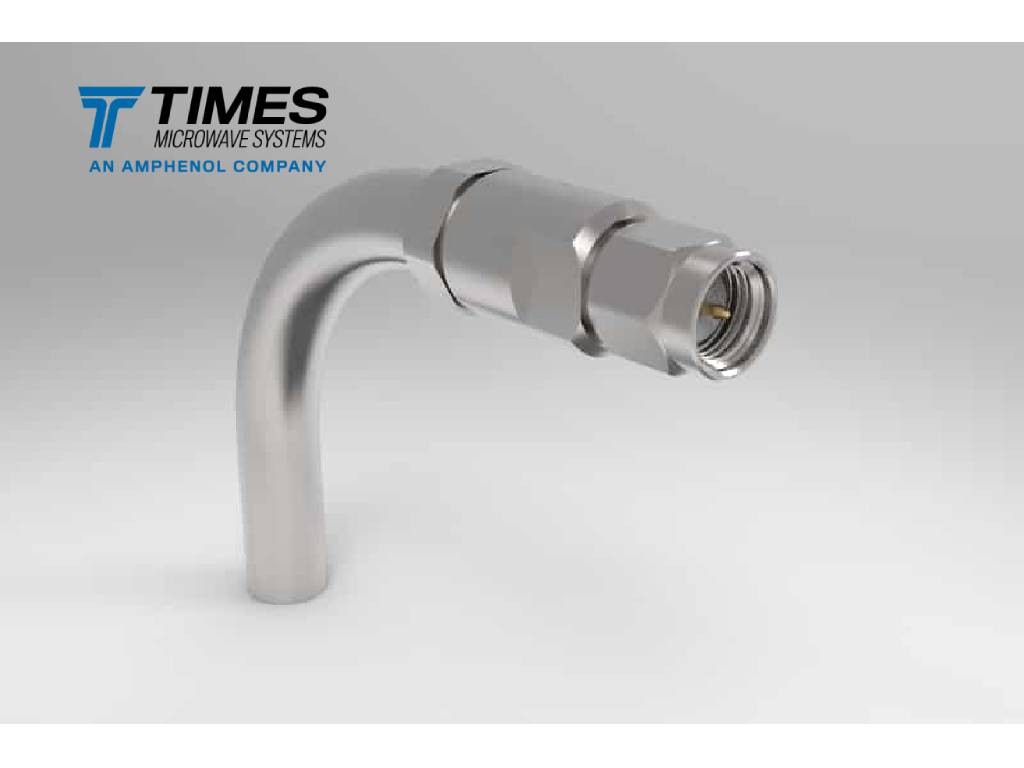

TC-205PUR-35M-SW-SS	3.5mm-Male straight connector for 205 size cables.	3.5mm	male (plug)	Straight	3190-6158
TC-205T-35M-SW-SS	Type 3.5mm, male (plug), straight, TC style connector for SFT-205...	3.5mm	male (plug)	Straight	3190-6156	SFT-205
TC-205PUR-35M-SS	3.5mm-Male straight connector for 205 size cables.	3.5mm	male (plug)	Straight	3190-6154

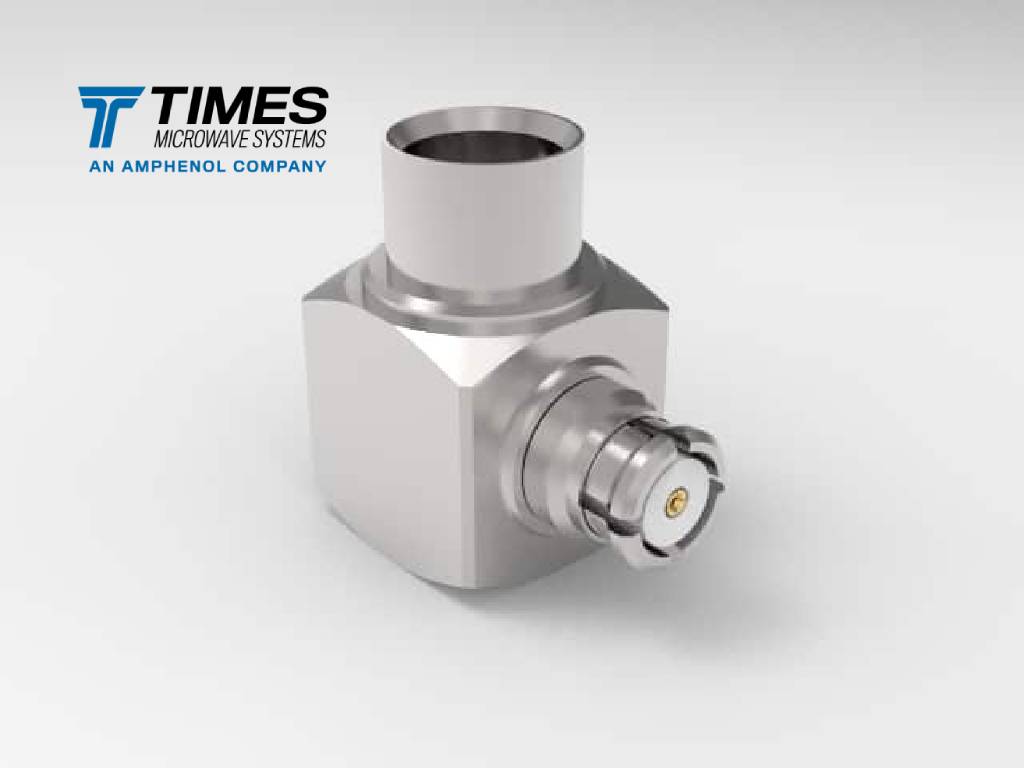

SC-402-SMPF-RA	Type SMP, female (jack), right angle, SC style connector for...	SMP	female (jack)	Right Angle	3190-6073	TFlex-402

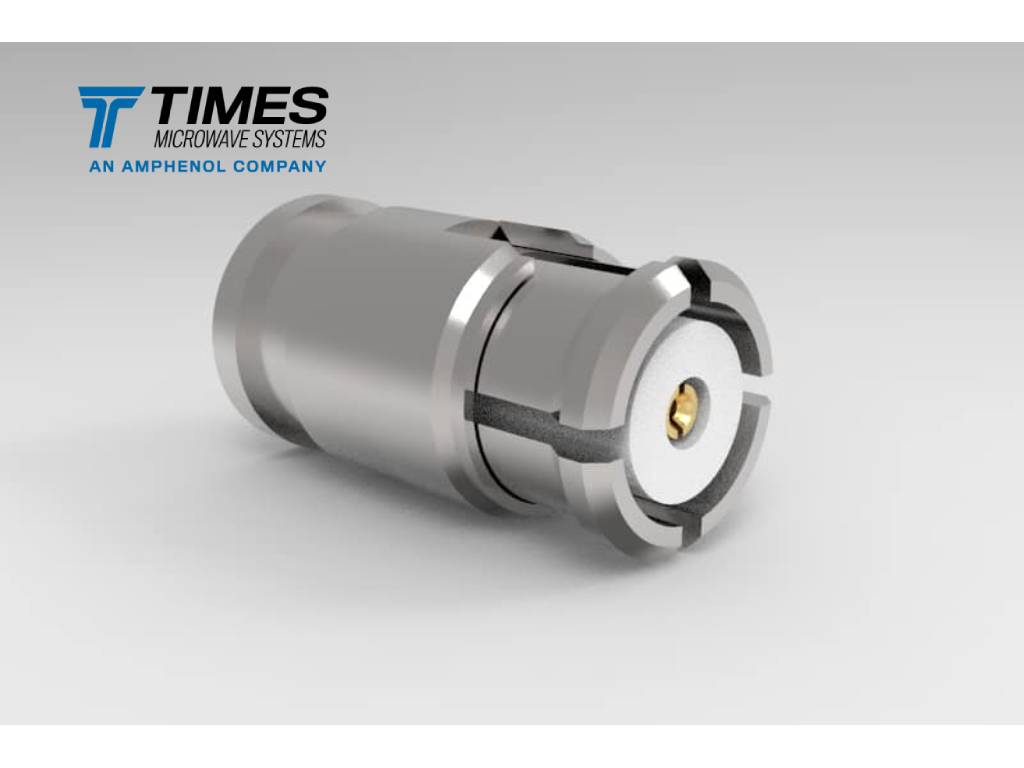

SC-405-SMPF	Type SMP, female (jack), straight, SC style connector for TFLEX®-405...	SMP	female (jack)	Straight	3190-6072	TFLEX-405
SC-402-SMPF	Type SMP, female (jack), straight, SC style connector for TFLEX®-402...	SMP	female (jack)	Straight	3190-6046	TFlex-402

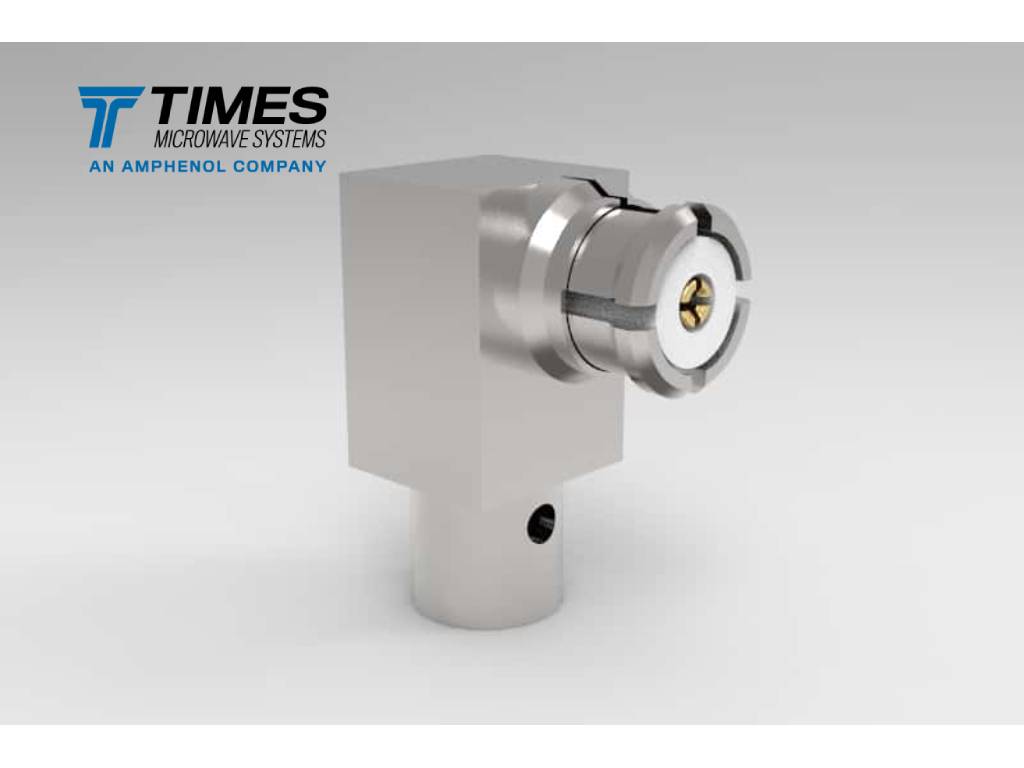

SC-405-SMPF-RA	Type SMP, female (jack), right angle, SC style connector for...	SMP	female (jack)	Right Angle	3190-6045	TFLEX-405

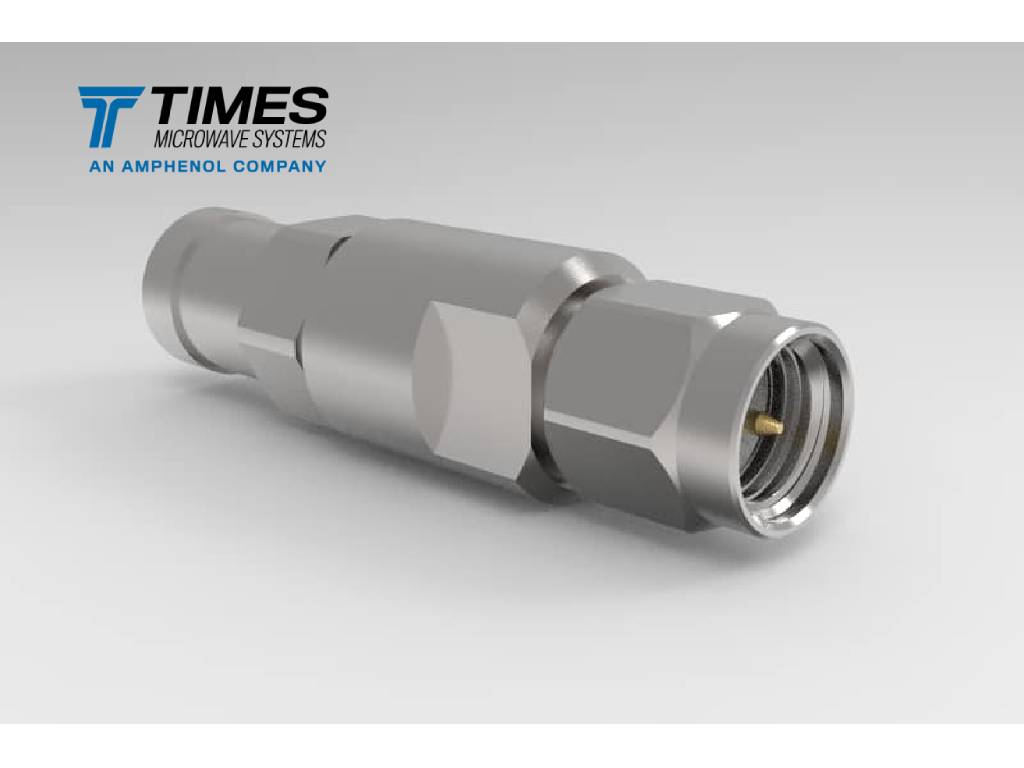

TC-205T-35M-SS	Type 3.5mm, male (plug), straight, TC style connector for SFT-205...	3.5mm	male (plug)	Straight	3190-2925	SFT-205

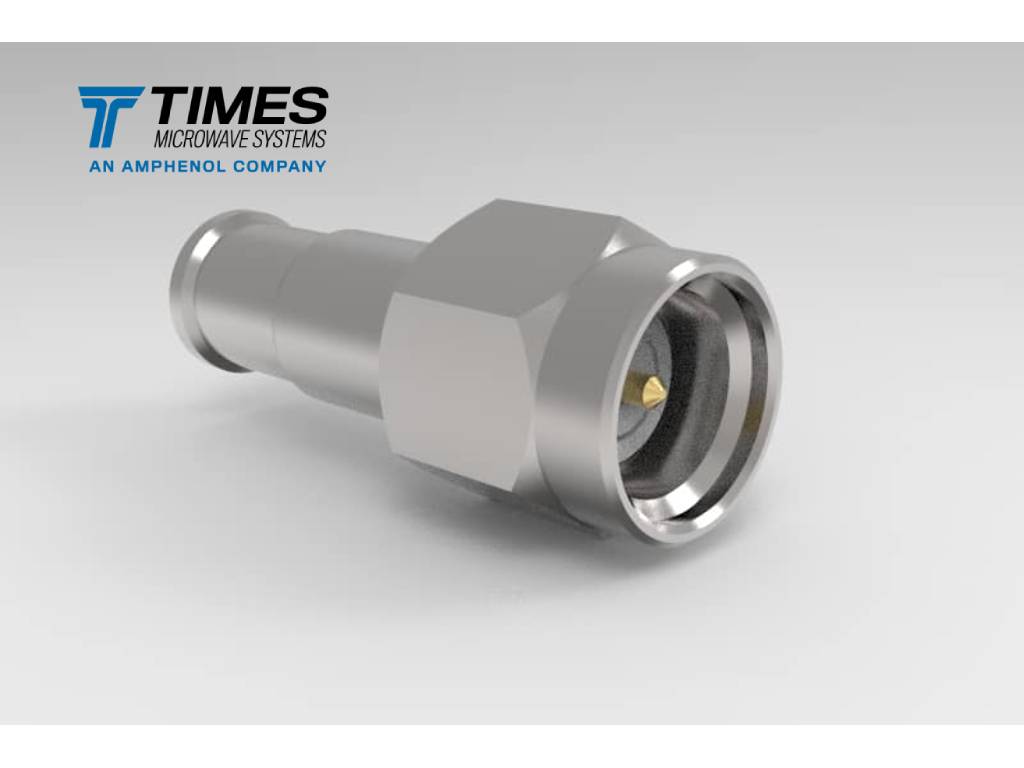

TC-402-KM-SS	Type K, male (plug), straight, TC style connector for TFLEX®-402...	2.92mm	male (plug)	Straight	3190-2842	TFlex-402
EZ-160-KF-SS	Type K, female (jack), straight, EZ style connector for MG-160...	2.92mm	female (jack)	Straight	3190-6472	MG-160
EZ-160-KM-SW-SS	Type K, male (plug), straight, EZ style connector for MG-160...	2.92mm	male (plug)	Straight	3190-6266	MG-160
EZ-160-KM-SS	Type K, male (plug), straight, EZ style connector for MG-160...	2.92mm	male (plug)	Straight	3190-6116	MG-160
SP-SPFLX095-KM-LW	Type 2.92mm, male (plug), straight, SP style connector for SPFLX095-LW...	2.92mm	male (plug)	Straight	SP099	SPFLX-095-LW
SP-SPFLT200-KM-RA	Type 2.92mm, male (plug), right angle, SP style connector for...	SMP	male (plug)	Right Angle	SP068	SPFLT-200
SP-MG160-KM	Type 2.92mm, male (plug), straight, SP style connector for MG-160...	2.92mm	male (plug)	Straight	SP029	MG-160
SP-MG130-24M	Type 2.4mm, male (plug), straight, SP style connector for MG-130...	2.4mm	male (plug)	Straight	SP014	MG-130
SP-MG200-KM	Type 2.92mm, male (plug), straight, SP style connector for MG-200...	2.92mm	male (plug)	Straight	SP013	MG-200
SP-PF210-KM	Type 2.92mm, male (plug), straight, SP style connector for PT210...	2.92mm	male (plug)	Straight	SP080	PT-210
SP-SPFLT140-KM	Type 2.92mm, male (plug), straight, SP style connector for SPFLT140...	2.92mm	male (plug)	Straight	SP074	SPFLT-140
SP-PF200-SMPM	Type SMP, male (plug), straight, SP style connector for PT092...	SMP	male (plug)	Straight	SP069
SP-PF092-KM	Type 2.92mm, male (plug), straight, SP style connector for PT092...	2.92mm	male (plug)	Straight	SP065	PT-092-SP
SP-IBP092-KM-RA	Type 2.92mm, male (plug), right angle, SP style connector for...	2.92mm	male (plug)	Right Angle	SP054
SP-PTSR110-KM	Type 2.92mm, male (plug), straight, SP style connector for PTSR110...	2.92mm	male (plug)	Straight	SP041	PTSR-110
SP-SPFLT200-35F	Type 3.5mm, female (jack), straight, SP style connector for SPFLT200...	3.5mm	female (jack)	Straight	SP025	SPFLT-200
SP-SPFLT200-35M	Type 3.5mm, male (plug), straight, SP style connector for SPFLT200...	3.5mm	male (plug)	Straight	SP023	SPFLT-200
SP-SPFLT200-35M-E	Type 3.5mm, male (plug), elbow, SP style connector for SPFLT200...	3.5mm	male (plug)	Elbow	SP022	SPFLT-200
SP-SPFLT200-KM	Type 2.92mm, male (plug), straight, SP style connector for SPFLT200...	2.92mm	male (plug)	Straight	SP021	SPFLT-200

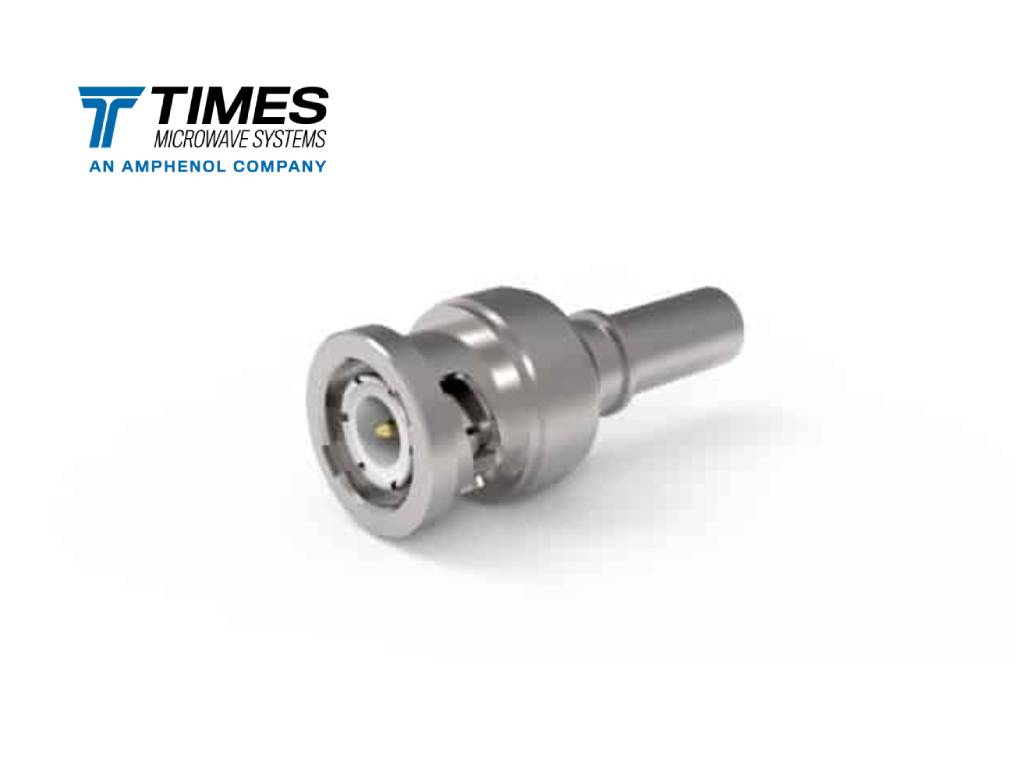

EZ-195-BM-X	Type BNC, male (plug), straight, EZ style connector for LMR®-195...	3.5mm BNC	male (plug)	Straight	3190-6141	LMR-195 LMR-195-DB LMR-195-FR
